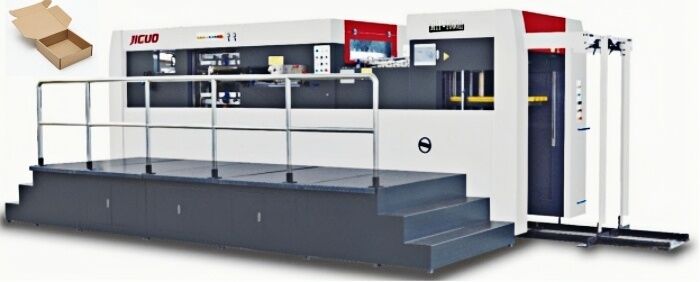

High-Precision Full-Stripping Solution JIGUO MYP-1060H Automatic Die Cutter

High-Precision Full-Stripping Solution JIGUO MYP-1060H Automatic Die Cutter

Nome da marca:	JIGUO
Número do modelo:	MYP-1060H
MOQ:	1
preço:	$100000-$1100000
Tempo de entrega:	30
Condições de pagamento:	L/C, T/T, MoneyGram

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

Hebei

Certificação:

Detalhes da embalagem:

enrolamento do filme

Habilidade da fonte:

Destacar:

High-Precision Automatic Die Cutter

Full-Stripping Die Cutting Machine

JIGUO MYP-1060H Die Cutter

Descrição do produto

High-Precision Full-Stripping Solution JIGUO MYP-1060H Automatic Die Cutter

The JIGUO MYP-1060H automatic die-cutting machine significantly improves post-press processing efficiency through its automated full stripping process. Designed for high precision and high-speed operation, this machine simplifies the die-cutting process, increases productivity, and ensures high-quality finished products. It is an ideal choice for industries requiring precise cutting and stripping, and its reliable performance optimizes workflows.

Technical Specifications

Model	MYP-1060H
Max. paper size	1060*760mm
Min. paper size	400*360mm
Max. cutting size	1040*740mm
Max. die cutting speed	7500s/h
Max. Stripping speed	7000s/h
Min. Gripper Edge	7mm
Sheet thickness	Corrugated board: ≤4mm Cardboard: 80-2000g/m²
Die-cutting Accurate	±0.1mm
Max. Feeding Pile	1600mm
Max. Delivery Pile	1400mm
Max. pressure	350 Tons
Total power	24 Kw
Net weight	19 Tons
Air requirement (Buyer Provided)	0.8Mpa,＞0.36m³/min
Overall dimension	(6200+1450)(2280+1850)(2230)mm

Machine Components & Features

Paper Feeding Unit

The JIGUO MYP-1060H automatic die-cutting machine utilizes a fully automated stripping process, significantly improving post-press processing efficiency. Designed for high precision and high-speed operation, this machine simplifies the die-cutting process, increases production efficiency, and ensures high-quality finished products.

Paper Conveying Unit

The JIGUO die-cutting machine's bridge conveyor section is a crucial transfer and transition component between the feeding system and the die-cutting station. It features a smooth, non-slip conveying surface and adjustable guide plates, ensuring stable and precise transport of paper, corrugated cardboard, and other packaging materials, preventing skewing or jamming. Equipped with a synchronized speed control system, this conveyor section perfectly matches the operating rhythm of the front-end feeding unit and the back-end die-cutting unit, effectively reducing material waste and improving the overall accuracy and efficiency of the die-cutting process.

Die-cutting Unit

One-time stripping system removes all extraneous paper scraps and waste (except held margins) during die-cutting. Four-sided clearing (optional)
Upper, lower and middle die cam three-link transmission system provides stable, harmonious operation for high power and fast loading, unloading and calibration
Pneumatically lifted stripping frame with centering unit enables easy operation and reduced preparation time
Pre-installed platform with centering unit facilitates easy mounting of stripping plate
Rationally designed stripping process eliminates defects of low speed and plate deviation during stripping

Delivery Unit

One-time stripping system removes all excess paper scraps and waste in a single operation (except retained edge portions). Four-sided waste removal (optional)
Upper, lower, and middle die cam three-link transmission system operates stably, coordinately, and precisely, suitable for high-power, fast loading, unloading, and calibration
Pneumatic lifting stripping frame with central positioning device enables easy operation and reduced preparation time
Pre-assembly platform with central positioning device for convenient installation of stripping plate
Rationally designed stripping process effectively solves problems such as slow speed and plate displacement

Automatic Lubrication System

Timed and controlled lubrication for optimal performance
Closed-loop forced-injection lubrication system with filtration
Reduced maintenance and extended equipment lifespan
Improved overall machine performance and stability

Product Gallery

Our Partners

Production Facility

Frequently Asked Questions

What types of materials can the JIGUO die-cutter handle?

The JIGUO die-cutter is compatible with a wide range of packaging materials, including corrugated board, coated paper, kraft paper, cardboard, and thin plastic sheets. It can adapt to different material thicknesses by adjusting the pressure and guide components.

How to resolve material skewing during the die-cutting process?

First, check if the guide plates of the bridge section are properly adjusted to match the material width. Then, verify that the feeding speed of the feeder system is synchronized with the die-cutting unit. If the issue persists, calibrate the servo positioning mechanism of the die-cutting unit to ensure precise alignment.

What causes edge burrs on the die-cut products and how to fix it?

Edge burrs are usually caused by insufficient die-cut pressure, blunt die-cutting blades, or uneven plate base. You can solve this by increasing the pressure moderately within the equipment's rated range, replacing or sharpening the die-cutting blades, and leveling the die-cutting plate base to ensure uniform force application.

How to maintain the JIGUO die-cutter for long-term stable operation?

Regular maintenance includes three key steps: 1) Clean the feeder system, bridge section, and die-cutting unit after each shift to remove residual paper dust and debris; 2) Lubricate the transmission parts and guide rails monthly to reduce friction; 3) Inspect the sensor system and servo components quarterly, and replace worn parts in a timely manner.

Can the JIGUO die-cutter be customized for special die-cutting patterns?

Yes. The die-cutting unit is designed with a flexible plate-mounting structure, which supports customized die-cutting plates for special patterns and shapes. We also provide professional technical guidance for plate installation and parameter debugging to meet personalized production needs.
